STAINLESS STEEL MESH PANELS

STAINLESS STEEL MESH PANELS

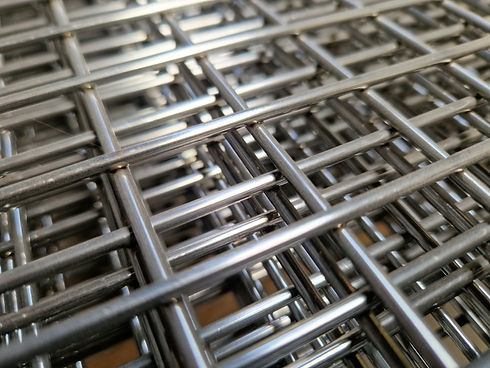

Stainless steel weld mesh panels are high quality welded wire mesh panels manufactured from either 304 grade or 316 grade stainless steel.

​

Mastermesh stock a variety of mesh panel sizes in 3mm (10G) wire thicknesses with mesh apertures of 25mm x 25mm (1" x 1") and 50mm x 50mm (2" x 2").

​

Stainless steel 304 grade provides a much longer anti-corrosion life than even our best galvanised weld mesh panels. The stainless steel 316 grade panels are idea for extreme coastal locations and marine environments as they offer enhanced protection over the 304 grade.

Stainless Steel Welded Wire Mesh Panels
Stainless Steel Weld Mesh Panels 50x50mm aperture (2" x 2" Inches)
Stainless Steel Welded Mesh Panels with a 25mm x 25mm Aperture (1 x 1 inch)

  • 304 Grade Stainless Steel Mesh panels

  • 316 Grade Stainless Steel Mesh panels

  • Joints are spot welded to form the wire mesh aperture

  • Supplied as endless mesh sheets for multiple applications

  • ​Available in 3.0mm (10G) wire Diameters

  • Marine and Coastal Applications

  • Commercial Fencing Panels

  • Pet cages / Dog Kennels

  • Security cages

  • Dog Fencing

  • Leaf protection for ponds

  • Construction applications

  • Garden fencing

Stainless Steel 304 and 316 grade stainless panels supplied in various flat sheet sizes
Stainless Steel Panels are flat sheets made from high quality stainless steel

STAINLESS STEEL WELD MESH PANELS (304 & 316 GRADE)

Panel Size
Mesh Aperture
Wire Thickness
Grade
6' x 4' (1.83m x 1.22m)
25mm x 25mm (1" x 1")
3mm / 10G
SS 304
6' x 4' (1.83m x 1.22m)
50mm x 50mm (2" x 2")
3mm / 10G
SS 304
6' x 4' (1.83m x 1.22m)
50mm x 50mm (2" x 2")
3mm / 10G
SS 316
8' x 4' (2.44m x 1.22m)
25mm x 25mm (1" x 1")
3mm / 10G
SS 304
8' x 4' (2.44m x 1.22m)
50mm x 50mm (2" x 2")
3mm / 10G
SS 304
8' x 4' (2.44m x 1.22m)
13mm x 13mm (1/2" x 1/2")
1.6mm / 16G
SS 304
Stainless Steel MESH PANEL USED FOR POND CO
