GALVANISED WELD MESH ROLLS
GALVANISED WELD MESH ROLLS

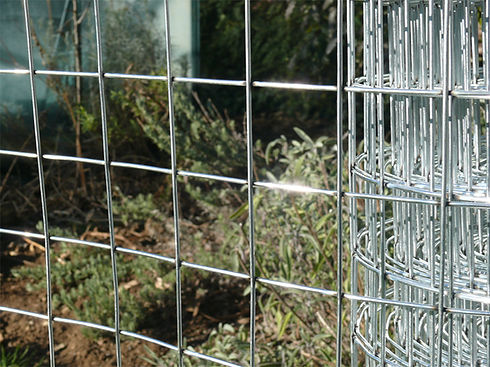

Galvanised welded mesh rolls are supplied are many roll widths, roll lengths, mesh apertures, wire thicknesses and galvanisation grades. Heavy grade galvanised mesh rolls are primarily used for wire fencing applications including security fencing, perimeter fencing, dog fencing and fox fencing. These type of mesh fences are supplied with 50mmx50mm (2"x2") mesh apertures in wire thicknesses including 3mm, 2.5mm and 1.6mm (10g, 12g & 14g) wire diameters.
Our heavy grade wire fencing is available in many roll widths and roll lengths from 0.9m wide, 1.2m wide, 1.5m wide, 1.8m wide and 2.4m wide (3ft, 4ft, 5ft, 6ft, and 8ft). Depending on the roll size mesh apertures available include 50mmx50mm (2"x2"), 25mmx25mm (1"x1"), 75mmx25mm (3"x1") and 75mmx75mm (3"x3").
Our lighter weight galvanised mesh rolls are used for garden fencing, crop protection, rat, rodent and squirrel protection, dog fences, aviaries, hutches and general applications. These galvanised mesh rolls are supplied in 16g (1.6mm), 19g (1mm), 20g (0.9mm) and 23g (0.6mm) wire thickness. Our apertures range from 50x50mm (2"x2"), 25mmx25mm (1x1"), 25mm x 12mm (1"x1/2"), 12mmx12mm (1/2"x1/2") and 6mmx6mm (1/4"x1/4") mesh apertures. To view more from this range, please click.
​
TYPICAL APPLICATIONS
-
Security fencing
-
Perimeter fencing
-
Garden fencing
-
Dog runs and enclosures
-
Industrial Guards
-
Tree Guard Mesh
-
Tree Protection
-
Agricultural Fences
-
Security Cages
-
Dog Fences
-
Leaf protection for Pons
-
Construction applications
GALVANISATION
Our standard range is supplied as a high quality pre-galvanised welded wire mesh to BSEN 10244-2 and manufactured to high tolerances.
​
Most security fencing has a 50mm x 50mm mesh aperture (2" x 2").
​
Joints are spot welded to form the square mesh aperture
HEAVY WELD MESH RANGE
​
Mesh Aperture:
50MM X 50MM (2" x 2")
75MM X 25MM (3" x 1")
Roll Heights / Widths:
900mm, 1200mm & 1500mm. 1800mm & 2400mm (3ft, 4ft, 5ft, 6ft & 8ft)
Wire Thicknesses:
2mm, 2.5mm & 3mm (14G, 12G & 10G)
Other sizes:
We also supply 25mm x 25mm (1" x 1") mesh in 14G and 16G wire (2mm & 1.6mm dia.
​
LIGHT WELDMESH ROLLS
FROM GABION MESH, MESH TREE GUARDS, RODENT PROTECTION, GARDEN FENCING, SECURITY FENCING, DOG FENCES AND MANY MORE, MASTERMESH WIRE LTD HAVE A PRODUCT TO MEET YOUR REQUIREMENTS. OUR PRODUCTS ARE GALVANISED TO DIFFERENT LEVELS DEPENDING ON THE APPLICATION INCLUDING PRE-GALVANISED MESH ROLLS, HOT-DIPPED GALVANISED MESH ROLLS AND PRIME DOUBLE-GALVANISED MESH ROLLS.
At Mastermesh Wire Ltd we can supply the heavy-grade galvanised weld mesh fencing that suits your specific job from high quality, BSEN specified mesh rolls. We understand that it is the customers' choice to decide what the correct product is for their specific needs. Out team are always available to provide specific advice and help guide your on the product that meets your needs
STANDARD STOCK ROLLS
Roll Size | Mesh Aperture | Wire Thicknes |
|---|---|---|
0.6M x 25M | 50mm x 50mm (2 x 2") | 2.5mm / 12G |
0.9M x 12.5M | 50mm x 50mm (2 x 2") | 2.5mm / 12G |
0.9M x 25M | 50mm x 50mm (2 x 2") | 2.5mm / 12G |
1.2M x 12.5M | 50mm x 50mm (2 x 2") | 2.5mm / 12G |
1.2M x 25M | 50mm x 50mm (2 x 2") | 2.5mm / 12G |
1.5M x 12.5M | 50mm x 50mm (2 x 2") | 2.5mm / 12G |
1.5M x 25M | 50mm x 50mm (2 x 2") | 2.5mm / 12G |
1.8M X 12.5M | 50mm x 50mm (2 x 2") | 2.5mm / 12G |
1.8M X 25M | 50mm x 50mm (2 x 2") | 2.5mm / 12G |
2.4M x 25M | 50mm x 50mm (2 x 2") | 2.5mm / 12G |
Roll Size | Mesh Aperture | Wire Thickness |
|---|---|---|
0.9M x 25M | 50mm x 50mm (2" x 2") | 3mm / 10G |
1.2M x 25M | 50mm x 50mm (2" x 2") | 3mm / 10G |
1.8M X 25M | 50mm x 50mm (2" x 2") | 3mm / 10G |
Roll Size | Mesh Aperture | Wire Thickness |
|---|---|---|
0.9M x 25M | 50mm x 50mm (2 x 2") | 2mm / 14G |
1.2M x 12.5M | 50mm x 50mm (2 x 2") | 2mm / 14G |
1.2M x 25M | 50mm x 50mm (2 x 2") | 2mm / 14G |
1.5M x 12.5M | 50mm x 50mm (2 x 2") | 2mm / 14G |
1.5M x 25M | 50mm x 50mm (2 x 2") | 2mm / 14G |
1.8M X 12.5M | 50mm x 50mm (2 x 2") | 2mm / 14G |
1.8M X 25M | 50mm x 50mm (2 x 2") | 2mm / 14G |
Roll Size | Mesh Aperture | Wire Thickness |
|---|---|---|
0.9M x 25M | 75mm x 75mm (3" x 3") | 2.5mm / 12G |
1.2M x 25M | 75mm x 75mm (3" x 3") | 2.5mm / 12G |
1.2M x 25M | 75mm x 25mm (3" x 1") | 2.5mm / 12G |
1.8M X 25M | 75mm x 25mm (3" x 1") | 2.5mm / 12G |
